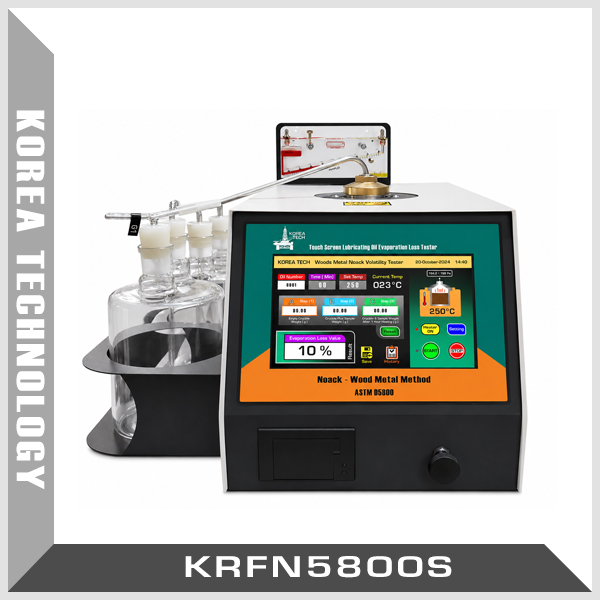

Korea Tech Noack evaporation loss Analyzer has designed according to ASTM D5800 standard test method and it is suitable for determination of Lubricating Oil Loss evaporation (None Wood Metal method ).
Feature & Specification
Noack Volatility Tester
1. The apparatus equipped to the large LCD display tenths of a millimeter (0.1mm) rod type depth measurement mechanism – convenient and quick to use .
2. Time controller adopts digital display model, controlling range is According to user chooses.
3. The apparatus has equipped to multi alarm system . it can give you alarm if its any wrong at instrument .
4. The apparatus has equipped to high precision vacuum pump and pressure gauge.
5. The apparatus has equipped to big EPROM . it can record temperature range and pressure value during process
Specification
1. Temperature Range : :ambient to 300 C
2. Temperature Resolution : ± 0.1 C
3. Temperature Precision : : ± 0.5 C
4. Heating Unit : Light
5. Vacuum Control : Pressure Gauge and Filter
6. Pressure Range : 0 to 25 mm H2O
7. Pressure Stability : 0.2 mm H2O
8. Power : 2.0 KW
9. Voltage : 220 V ± 10% 50 Hz
